Fiamma Carry-Bike Mercedes Sprinter Frame (for vans from 2018 onwards) Silver

Fiamma Carry-Bike

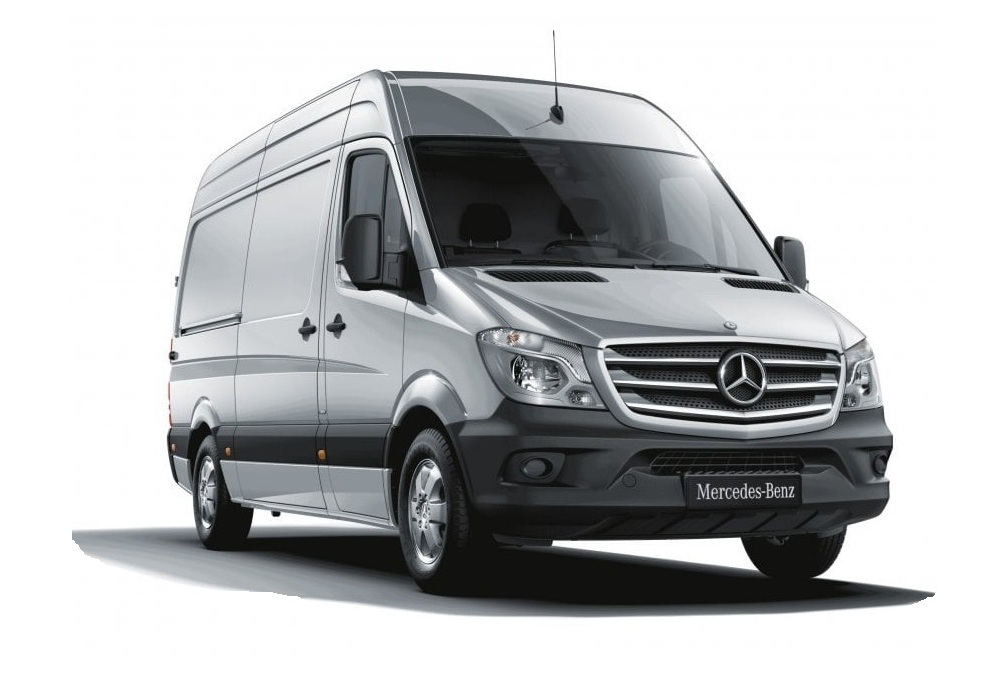

Mercedes Sprinter Frame

Designed for vehicles from 2018 onwards

This new design bike rack from Fiamma has a stainless steel supporting structure and will carry up to three standard bikes (extra parts needed) or two e-bikes

The sturdy stainless steel frame is installed using the vehicles door hinges

This version allows the lower frame to be mounted in three positions… standard, intermediate & lower and this can make loading the bikes easier

This rack will hold a maximum load of 50kg and has a silver finish

Please note that in the intermediate and lowered positions it is necessary to use a trailer board as the lights & number plate will be covered by the bikes

Not suitable for vehicles with 270° hinge system

Photos show the bike rack fitted with Rail Premium but the rack is now supplied with the upgraded Rail Plus

The product can be installed on :

• standard original vehicles (not modified)
• camper vans with a rear window with a protrusion of less than 9 mm
• camper vans with a rear window with a protrusion of more than 9 mm and distance from the edges of the tailgate greater than 100 mm

Supplied with :

• 2 x Rail Plus

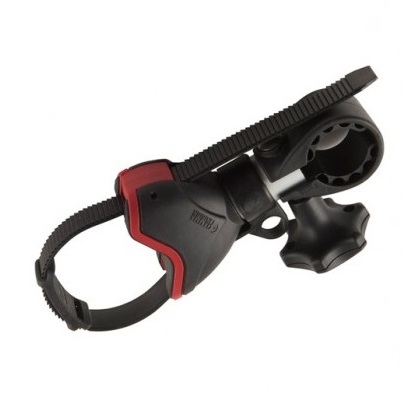

• 1 x Bike-Block Pro S1
• 1 x Bike Block Pro S3
• 1 x Rack Holder
• 1 x Security Strip
• 1 x Fitting instructions

  Additional Information :

User Guide Part 1   User guide Part 2

Fiamma part numbers : 08753-02 + 02096-35
